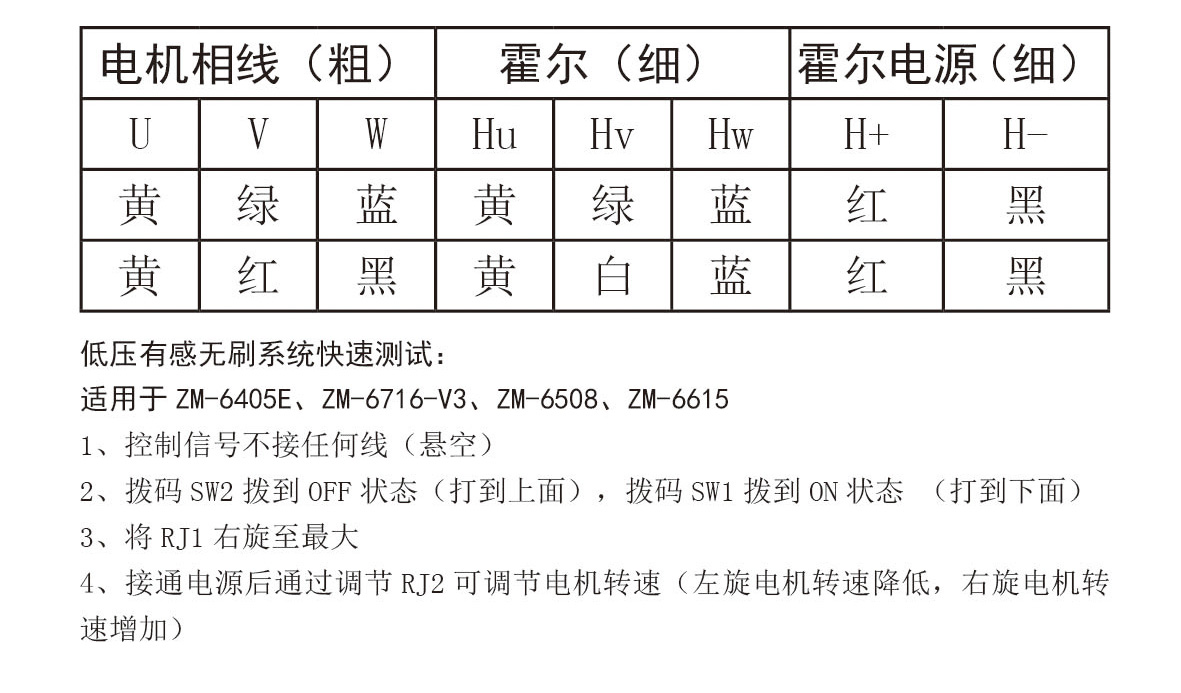

注意：棕色線不用接！
型號
| 額定電壓
VDC | 額定電流
A | 額定功率
W | 額定轉速
RPM | 額定轉矩
N.M | 軸頸
mm | 適配驅動器
| | 42BL50S03-230TR0 | 24 | 1.6 | 30 | 3000 | 0.1 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 42BL60S06-230TR0 | 24 | 3.1 | 60 | 3000 | 0.2 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 42BL80S09-230TR0 | 24 | 4.7 | 90 | 3000 | 0.3 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 57BL55S02-212TF0 | 24 | 1.1 | 22 | 1200 | 0.15 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL55S06-230TF0 | 24 | 3.1 | 60 | 3000 | 0.18 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-225TF0 | 24 | 5.2 | 100 | 2500 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-230TF0 | 24 | 5.2 | 100 | 3000 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S15-336TF0 | 36 | 5.2 | 145 | 3600 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S06-210TF0 | 24 | 3.1 | 60 | 1000 | 0.6 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S18-230TF0 | 24 | 9.3 | 180 | 3000 | 0.6 | 8 | ZM-6508 ZM-6615 | | 57BL110S21-230TF0 | 24 | 11 | 210 | 3000 | 0.7 | 8 | ZM-6615 | | 57BL110S30-3150TF0 | 310 | 1.2 | 300 | 5000 | 0.7 | 8 | ZM-7202 | | 57BL112R18-332TF0 | 36 | 6.2 | 180 | 3200 | 0.54 | 8 | ZM-6508 ZM-6615 | | 57BL112R18-230TF0 | 24 | 9.3 | 180 | 3000 | 0.6 | 8 | ZM-6615 | | 57BL114R30-446TR0 | 48 | 7.8 | 300 | 4600 | 0.6 | 8 | ZM-6508 ZM-6615 | | 57BL112R18-232TF0 | 24 | 9.4 | 180 | 3200 | 0.54 | 8 | ZM-6615 | | 57BL112R15-340DF0 | 36 | 5.2 | 150 | 4000 | 0.36 | 8 | ZM-6508 ZM-6615 | | 60BL100S08-215TF0 | 24 | 4.1 | 80 | 1500 | 0.5 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 60BL100S15-230TF0 | 24 | 7.8 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL100S15-230TF0B | 24 | 7.8 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL100S15-330TF0 | 36 | 5.2 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL120S25-430TF0 | 48 | 6.5 | 250 | 3000 | 0.75 | 14 | ZM-6508 ZM-6615 | | 60BL120S25-3130TF0 | 310 | 1 | 250 | 3000 | 0.75 | 14 | zm-7202 | | 60BL80S05-220TC0 | 24 | 2.6 | 50 | 2000 |
|
| ZM-6405 ZM-6405E ZM-6508 | | 80BL130S35-330TK0 | 36 | 12 | 350 | 3000 | 1.2 | 14 | ZM-6615 | | 80BL145S55-445TK0 | 48 | 15 | 550 | 4500 | 1.2 | 14 | ZM-6615 | | 80BL145S55-3130TK0 | 310 | 2.2 | 550 | 3000 | 1.6 | 14 | ZM-7206 | | 80BL165S55-3115TK0 | 310 | 2.2 | 550 | 1500 | 3.5 | 14 | ZM-7206 | | 80BL148S75-3130TK0 | 310 | 3 | 750 | 3000 | 2.5 | 14 | ZM-7206 | | 80BL180S120-3140TK0 | 310 | 4.8 | 1200 | 4000 | 3 | 14 | ZM-7206 | | 80BL89S25-430TK0 | 48 | 6.5 | 250 | 3000 | 0.7 | 14 | ZM-6508 ZM-6615 | | 80BL89S40-430TK0 | 48 | 10 | 400 | 3000 | 1.2 | 14 | ZM-6615 | | 80BL89S40-445TK0 | 48 | 10 | 400 | 4500 | 0.9 | 14 | ZM-6615 | | 80BL89S50-445TK0 | 48 | 15 | 500 | 4500 | 1.2 | 14 | ZM-6615 | | 80BL116S50-430TK0 | 48 | 15 | 500 | 3000 | 1.6 | 14 | ZM-6615 | | 57BL55S06-230TF9 | 24 | 2.9 | 60 | 3000 | 0.16 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-230TF9 | 24 | 5.3 | 100 | 3000 | 0.3 | 8 | ZM-6508 ZM-6615 | | 57BL95S06-210TF9 | 24 | 2.9 | 60 | 3000 | 0.57 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S15-230TF9 | 24 | 8 | 150 | 3000 | 0.47 | 8 | ZM-6508 ZM-6615 |
·應用領域
· 以上為本款產品的基本介紹，如需詳細了解更多多樣化創意搭配以及購買請聯系下方聯系方式 ·廠家直銷 根據您的實際情況可否需要特殊規格特殊規格的步進電機，請和我們溝通，在技術允許的范圍內，加工訂貨。例如，出軸的直徑、長短、伸出方向、相線（編碼器線）長度等。如購買配套設置可免費給您組裝調試好！ 聯系人：李先生 電話：18010107283 QQ：2223199877 微信：shidaichaoqun 淘寶店鋪：https://shop114114198.taobao.com/index.htm?spm=2013.1.w5002-16614260111.2.ZPGxYs
|
