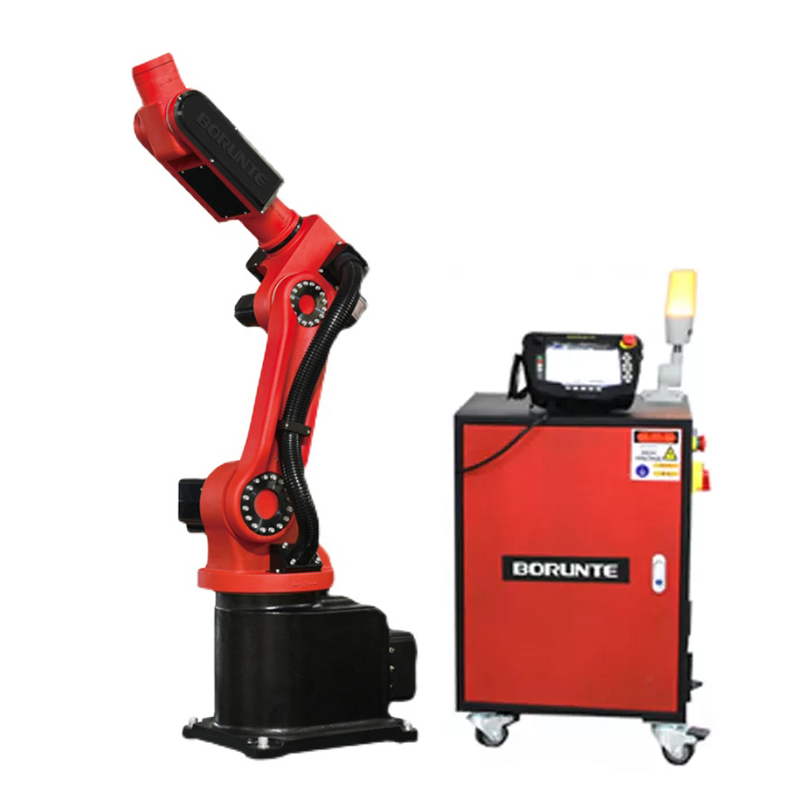

（1） Introduction to brtirus0805a

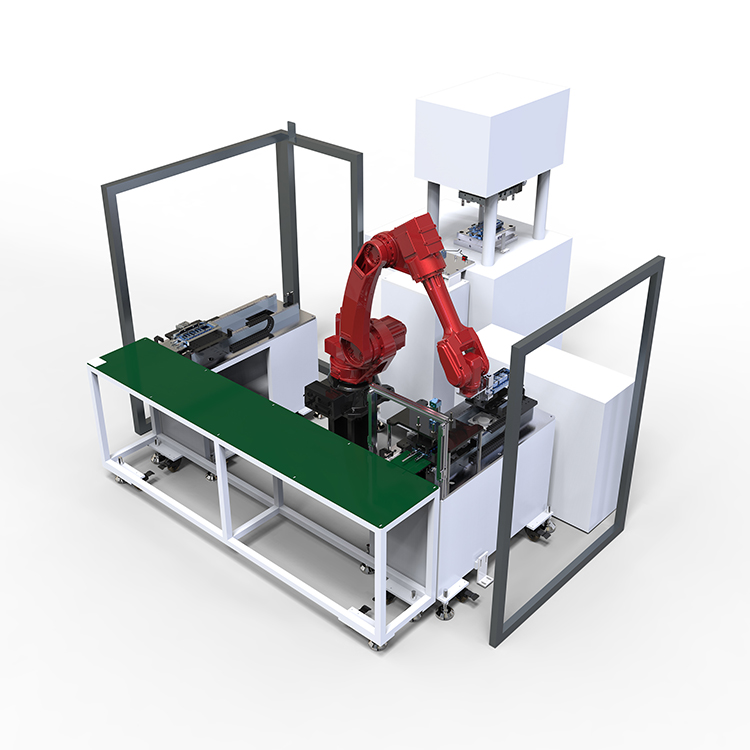

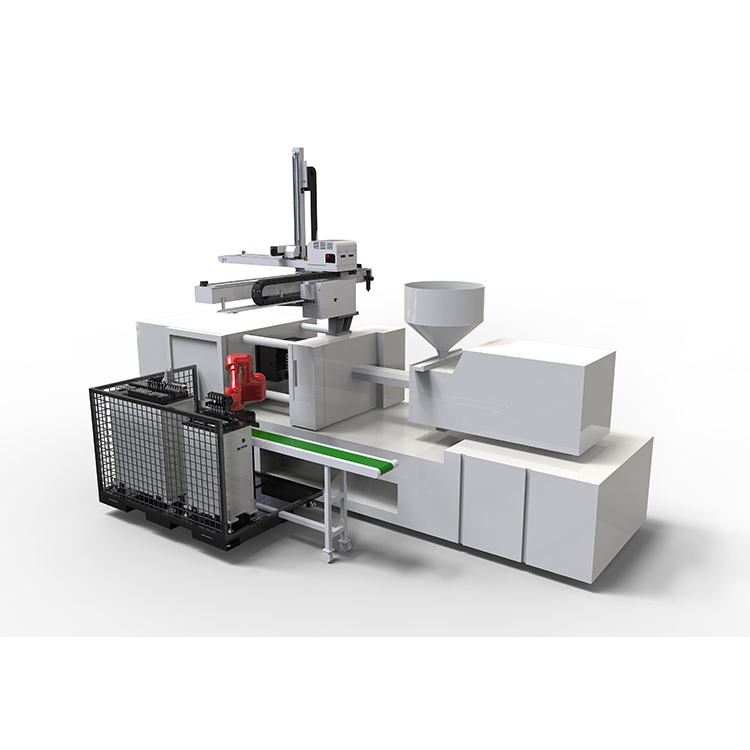

Brtirus0805a robot is the fifth generation of Bronte robot. The whole system is simple in operation, compact in structure, high in positioning accuracy, and good in dynamic performance. With a load capacity of 5kg, it is very suitable for parts taking, loading and unloading, assembly and handling of injection molding machines. Compared with similar foreign machines, it has a great price advantage. With the rising cost of manpower and raw materials, more and more traditional manufacturing enterprises are forced to transform and upgrade. Because of its low profit margin, it is difficult to invest a large amount of money to upgrade the production line. Therefore, the six axis industrial robot has a very broad market. 聯系方式：QQ:467102884 電話：18710050116（劉女士）， Contact: QQ: 467102884 Tel: 18710050116 (Ms. Liu)（WEchat）
（2） Advantages of brtirus0805a 1. Strong reliability - the six axis industrial robot is robust and durable, the number of parts used is minimized, the reliability is strong, and the maintenance interval is long; 2. Fast speed - six axis industrial robot, which optimizes the acceleration and deceleration performance of the robot and minimizes the working cycle time of the robot; 3. High precision - stable production quality of parts, with the best track accuracy and repeated positioning accuracy; 4. Rugged and durable - suitable for harsh production environment; 5. Universality - the six degree of freedom industrial robot has good universality and can be used for a variety of different work tasks. For example, changing the end manipulator (gripper, tool, etc.) of the hand of an industrial robot can perform different work tasks; 6. The further development of programmable production automation is flexible automation. The industrial robot can be reprogrammed according to the needs of its working environment, so it can play a good role in the flexible manufacturing process of small batch varieties. Brtirus0805a features: 1. The structure of servo motor and harmonic reducer is adopted, which is small in size, large in working range, fast in speed and high in accuracy, and can be integrated with auxiliary equipment such as turntable and slide conveyor chain system. 2. The handheld dialogue operator of the control system is simple and easy to learn, which is very suitable for production. 3. The structural parts of the robot body are open mold parts with good mechanical properties Brtirus0805a adopts a six axis joint robot structure, and six servo motors drive the rotation of six joint axes through the reducer and synchronous belt pulley. It has six degrees of freedom, namely rotation (x), lower arm (y), upper arm (z), wrist rotation (U), wrist swing (V) and wrist rotation (W). Brtirus0805a body joint is made of high-strength aluminum, which ensures high strength, high speed, high accuracy and high stability of the machine. Drawings
